Precast Retaining Walls

SCW has designed a unique, cost-effective, versatile solution for a wide variety of retention purposes like earth retention, material storage and flood stoppage uses or where speed of installation is critical to the program. Precast retaining wall units are available in a tailor-made range of widths and heights as required for each purpose specifically. Our in-house engineers design retaining wall designs of any shape or size as required.

Advantages :
  • This innovative product offers a high quality, long-lasting finish with low maintenance, and outstanding thermal performance.
  • High strength and durable product.
  • The pre-cast retaining walls were manufactured in quality assured and quality control environment complying with BIS
  • The quality controlled conditions under which the concrete is produced ensures that the dense precast concrete components have smooth surfaces that resist moistures penetration, fungus and corrosion
  • Minimal site work (No rebar, Shuttering & Propping and curing works).
  • Fast installation.
  • No plastering & water proofing required.
Precast Retaining Walls

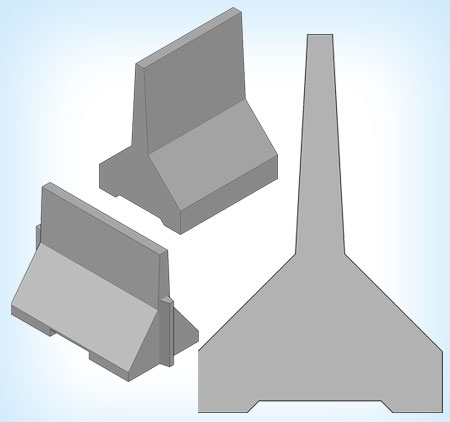

Free standing retaining wall
Free standing retaining wall
  • Easy to install.
  • Does not require any cast-in-situ wok.
  • Interlocking design to prevent any leakage of materials.
  • Does not require any fixing once they are placed in a positioned.
Dimensions:
Height (MM) Length (MM) Width (MM) Thickness (MM)
1500 1200 1300 200
2000 1200 1300 200
2500 1200 1300 200
3000 1200 1300 250
3500 1200 1300 250

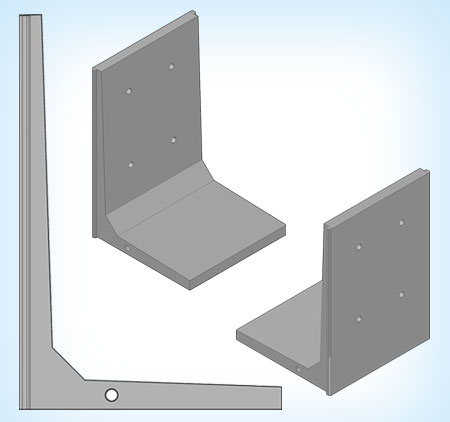

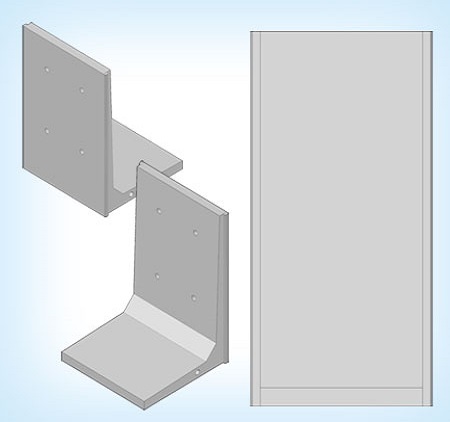

Bolted down retaining wall
  • Requires reinforced concrete foundation for installation.
  • Retaining wall is anchored to the concrete foundation.
  • Suitable for retaining material on both surfaces.
Dimensions:
Height (MM) Length (MM) Width (MM) Thickness (MM)
1000 1000 500 200
1500 1000 800 200
1750 1000 900 200
2000 1000 1000 250
2500 1000 1300 250
3000 1000 1500 250
3750 1000 1900 250
Bolted down retaining wall

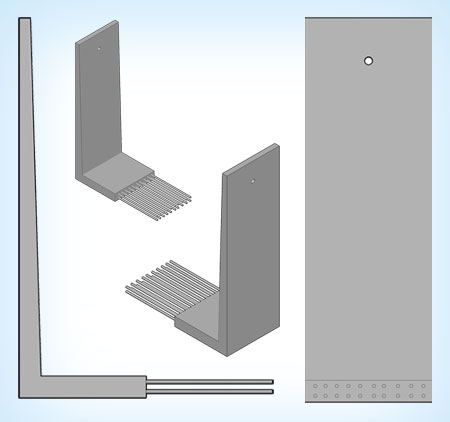

Cast in retaining wall
Cast in retaining wall
  • Manufactured with exposed reinforcement at bottom of the wall.
  • Installed during the pouring of the bottom RCC slab.
  • Heavy duty.
Dimensions:
Height (MM) Length (MM) Width (MM) Thickness (MM)
1000 1200 700 200
1500 1200 700 200
1750 1200 700 200
2000 1200 700 250
2500 1200 800 250
3000 1200 800 250
3500 1200 800 250

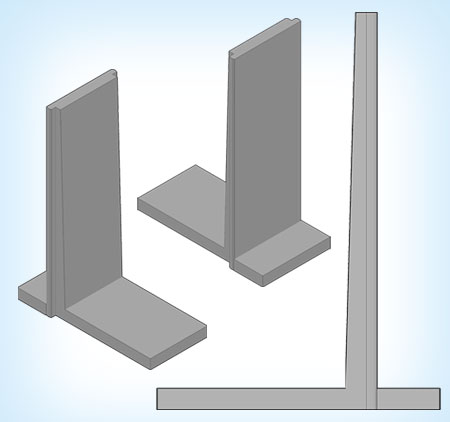

L Type retaining wall
  • Easy to install.
  • Interlinking design.
  • Suitable for retaining on single surface.
Dimensions:
Height (MM) Length (MM) Width (MM) Thickness (MM)
1400 5000 1050 200
1700 5000 1050 200
1900 5000 1350 200
2200 5000 1350 200
2700 4000 1800 250
3200 2500 2000 250
4300 2000 2500 250
L Type retaining wall

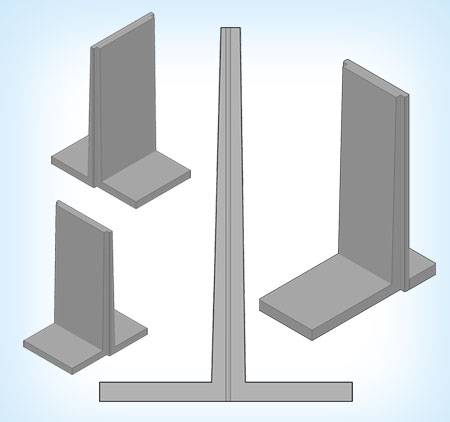

T Type retaining wall
T Type retaining wall
  • Easy installation.
  • Interlinking design.
  • Suitable for retaining on both surfaces.
Dimensions:
Height (MM) Length (MM) Width (MM) Thickness (MM)
1400 5000 1050 200
1700 5000 1050 200
2200 5000 1600 200
2700 4000 1800 250
3200 2500 2000 250
4300 2000 2500 250

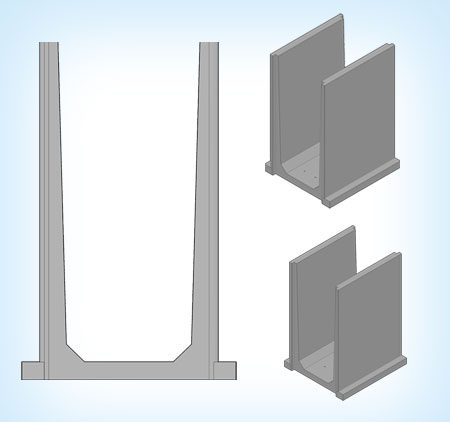

U Type retaining wall
  • Easy installation.
  • Interlinking design.
  • Suitable for retaining on both surfaces.
  • Suitable for protecting underground pipelines.

Precast Retaining Wall – Product details

Dimensions:
Height (MM) Length (MM) Width (MM) Thickness (MM)
2200 5000 1700 200
2700 4000 1900 200
3160 4000 1900 250
U Type retaining wall
